Portable Isolation Chamber (Negative Pressure)

IsoArk, portable isolation chamber, is designed for rapid setup of an infectious, biologically isolated area from the environment outside the chamber. The IsoArk is a complete solution for turning any room or area into a biologically contained and isolated area, allowing for the isolation of infected or contaminated people and matter.

Features
Specification
Download

  • The entire system meets and easily exceeds today’s standards for airborne infectious isolation, including the 2003 CDC guidelines for health care infection control.
  • Consists of 3 main parts as follows:
    1) Airlock provides an interim-pressured airspace for personnel entering and exiting the chamber. When entering the airlock the filtration system will automatically switch to a high-flush mode to ensure that negative pressure is maintained even when entering or exiting the chamber.
    2) Main chamber is constructed from a lightweight aluminium ‘quick connect’ structure supporting the transparent chamber liner that is made from special resistant laminate
    3) Filtration system combines a pre filter, a highly efficient HEPA-filter and a UV-radiation source.
  • Cables, wires and tubes can be routed through utility sleeves to operate equipment inside the isolated area.
  • Control panel on filtration system controls on/off switch, air flow rate, and high flushing mode.
  • Dimensions available upon customer needs.

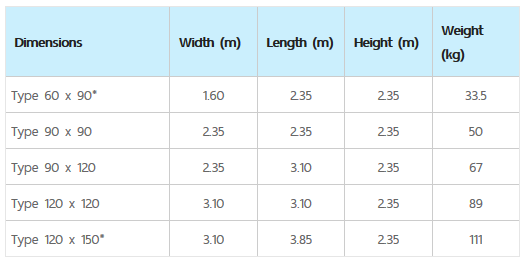

  • Dimensions of main chamber for standard models:
    Other dimensions are available upon request
  • Airlock dimensions (W×L×H): 1.60 x 0.90 x 2.10 m
  • Airlock weight: 54 kg
  • Airflow rate (3 Stages): 1,000, 1,400, and 2,200 m3/h
  • Brand: Beth-El, Israel
    -
